Specification
Brand : Fafeicy
BulletPoint : 1
BulletPoint1 : UPGRADE BOARD: for Monster8 V2 is an upgraded version of for Monster8 V1. While retaining the original V1 functionality, it has added an independent DC5V for RasPi, reserved WIFl interface for RRF firmware, added more safety circuits, and reserved more functional interfaces.
BulletPoint2 : DIY FUN: This for MKS board features 8 stepper drivers and 9 motor interfaces (Driver 0, 1, 2 1, 2 2, 3, 4, 5, 6, 7), supporting various motor drivers such as A4988, DRV8825, LV8729, TMC2208, TMC2209, TMC2225, TMC2226 for flexible DIY upgrades. Compatible with for Voron 2.4, for Ender 3 series. Firmware update required on for Github.
BulletPoint3 : WIDE COMPATIBILITY: Compatible with for Voron, supports for Marlin 2.0.x and for Klipper hardware, and for MKS MINI12864 LCD. Enables U disk printing and DFU mode setting via Booto button.
BulletPoint4 : INPUT AND OUTPUT: DC12‑24V input, 2 x MP1584EN outputs DC12V (for fans) and DC5V, integrated with SPI communication storage card and reserved SPI interface.
BulletPoint5 : TMC2209 STEPPER DRIVER: Super quiet and heat resistant, designed to improve performance with smoothly surface for easy handling and control.
IncludedComponents : BIGTREETECH Direct UPS 24V

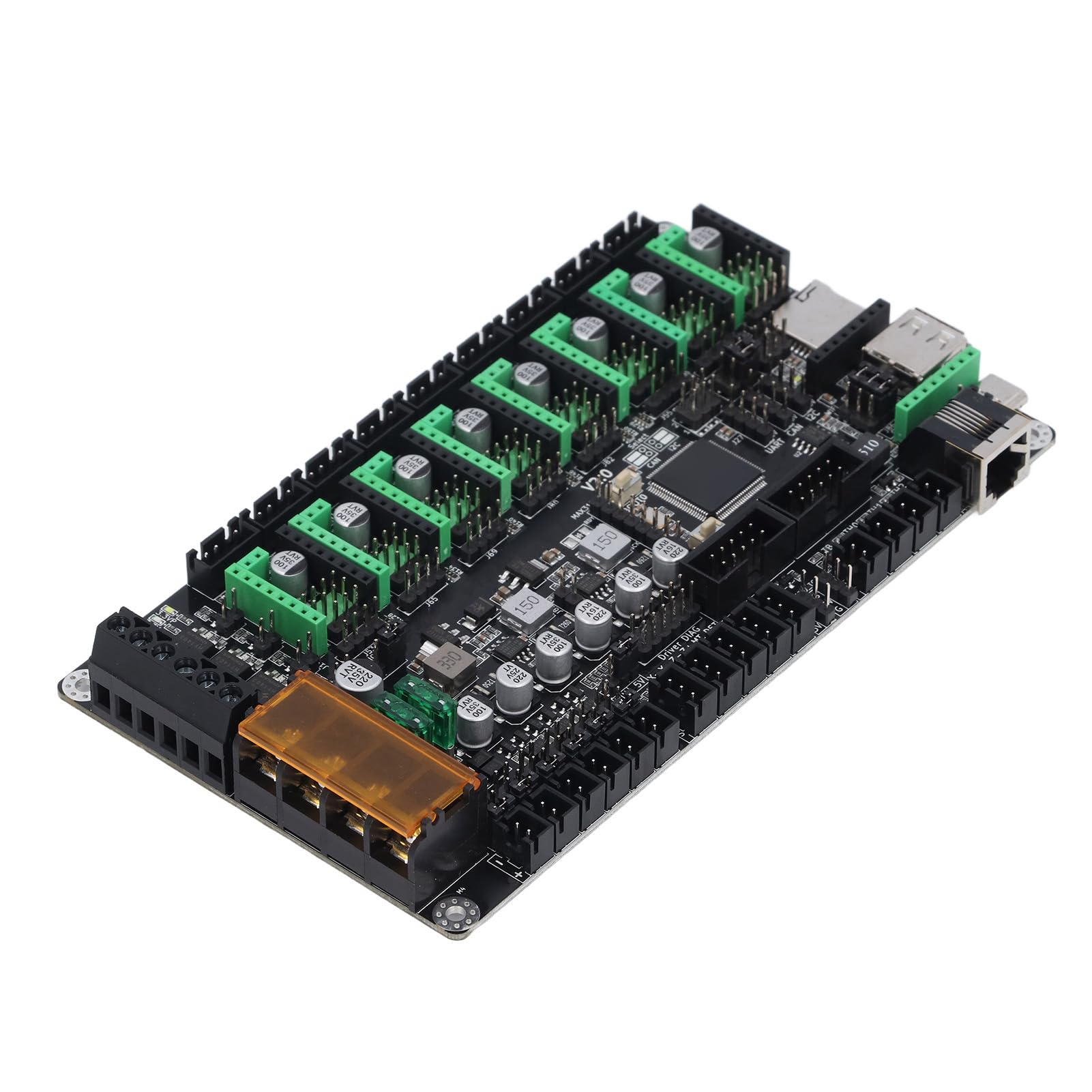

ItemName : for MKS Motherboard, V2 Motherboard 32 Bit 168Mhz F407 Control Board 3D Printers Mainboard PCB Board with TMC2209 Stepper, 3D Printer Controllers
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 22 centimeters
ItemPackageDimensions_Width : 14 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : 3d-printer-controllers
Manufacturer : Fafeicy
Material : PCB
ModelName : Fafeicyiwzt0frgop
ModelNumber : Fafeicyiwzt0frgop
NumberOfItems : 1
PartNumber : Fafeicyiwzt0frgop
ProductDescription : Specification:
Item Type: for MKS Motherboard
Material: PCB
Input Voltage: DC12-24V, Output Voltage: DC12V, DC5V, DC3.3V
3D Touch: Support
Hardware: Compatible with for Marlin 2.0.X, for Klipper
MCU: STM32F407VET6, 168MHz, 512KB Flash, 192KB
: Swappable
External Stepper : Yes
MOS Circuit Protecting: Resistor + Schottky diode protecting
Limit Circuit Protecting: Resistor + Schottky diode protecting
Temperature Circuit Protecting: Resistor + Schottky diode protecting
Motor Reverse EMF: Absorbed by phase sequence resistance
PA13 Pin: Used for MT_DET
PC5 Pin: Used for Neopixel
E4_EN : Same as E0_EN=PB6
Robin Interface: Available
MAX31865 Interface: Available, same as E4 axes
For RasPi Power: Independent DC5V 3A power supply
Limit Switch Power: Only Z+ can choose 5V or VIN, others are 5V
TMC2209 Driver Specifications:
Maximum Output Current: 2.5A
Default Current: 1.25A
Microstepping: Up to 1/256
Configuration: STEP/DIR or UART
Load Drive Voltage Range: 5.5-28V
IC Logic Operating Voltage: 3.3V 5V

PackageList:
1 x 3D Printer Motherboard
1 x USB Data Cable
38 x Jumper (Default 38, Extra as Gift)
8 x Driver
8 x Driver Heatsink
