Specification
Brand : TECHTONGDA
BulletPoint1 : Multifunctional Design: This is a machine kits for boring, welding, dismantling, and installation of excavators and loader chain crawler. These two machines can also be used separately. The portable line boring and welding machine integrates both boring and welding, with powerful functions.
BulletPoint2 : Control Box: The line boring and welding machine comes with one set control box, equipped with a control handle, which is convenient for remote operation. Adopt 110V servo motor, which has the characteristics of low speed and high torque, the whole machine can achieve smooth cutting processing, excellent performance.
BulletPoint3 : Hydraulic Crawler Pin Press: This machine is specially designed for crawler machines such as excavators to facilitate the disassembly and installation of crawlers. The electric pump is used as the power source to make the hydraulic jack move forward. Therefore, the pin shaft can be removed smoothly. It can be used with line boring machine and welding machine during maintenance.
BulletPoint4 : Large-capacity Oil Tank: The hydraulic drive pump is equipped with a 16L large-capacity oil tank, which uses 46 # or 68 # anti-wear hydraulic oil, has high hydraulic power efficiency, and is equipped with an internal visualization window and a pressure gauge to help observe the pressure at any time when the pump is working.
BulletPoint5 : Pressure Pipe: This hydraulic pump is equipped with two 16.4 feet/5 meters long pipe and can be used with a variety of hydraulic equipment to adapt to various working environments, such as lifting, stamping, bending, straightening, cutting, assembly and disassembly.
ExternallyAssignedProductIdentifier1 : 0840403729562
ExternallyAssignedProductIdentifier2 : 840403729562

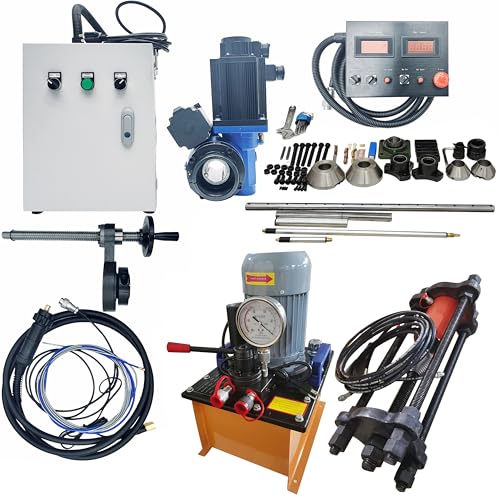

ItemName : TECHTONGDA 110V 2 in1 Portable Line Boring and Welding Machine with 110V 70T Hydraulic Crawler Pin Pressing Machine, European Connector, Chain Press Machine, for Excavators, Loaders Chain Repairing
ItemPackageQuantity : 3
ItemTypeKeyword : 1000-volt-tool-sets
Manufacturer : TECHTONGDA
PartNumber : L022583-022733
ProductDescription :

Parameter of 022583:

Product Name: 70T Crawler Pin Dismantling Machine/ Electric Chain Pinning Machine / Excavator Maintenance Pressing Sleeve Pressing Chain Integrated Machine

Rated voltage:110V

Rated power:1500W

Weight:283.73lbs+87.3lbs

Chain range:<35mm/1.38in

Pressure sleeve range: 120mm/4.72in

Screw diameter：40/50mm(1.57in/1.96in)

Screw length:1000mm/39.37in

Cylinder stroke:100mm/3.937in

Operating pressure:0-63Mpa

Pump station volume:16L

Note:There will be a little error in manual measurement.

The product pump station is equipped with a plug.

The tank should be filled with hydraulic oil, and then powered on to start, otherwise the pump station will be damaged and pay for itself.

The pump station needs to add 46 # or 68 # anti-wear hydraulic oil by yourself.

Parameter of 022733:

Product Name: Portable 2 in1 Line Boring and Overlay Welding(Smart Type)

Control mode: manual/automatic

Application: Boring, repair welding inner hole

Main motor power: 2.35KW

Feed motor: torque 40Nm (gear transmission) torque 8.5Nm (worm gear)

Voltage: 110V 50/60HZ

Working stroke: 260mm

Main engine speed: 0-390r/min

Boring diameter: 55-300mm

Feeding speed: stepless speed regulation

The maximum amount of knife cutting on one side: 3mm

Repair welding diameter: 50-300mm

Machining roughness: Ra3.2

Machining hole roundness: ≤0.02mm
